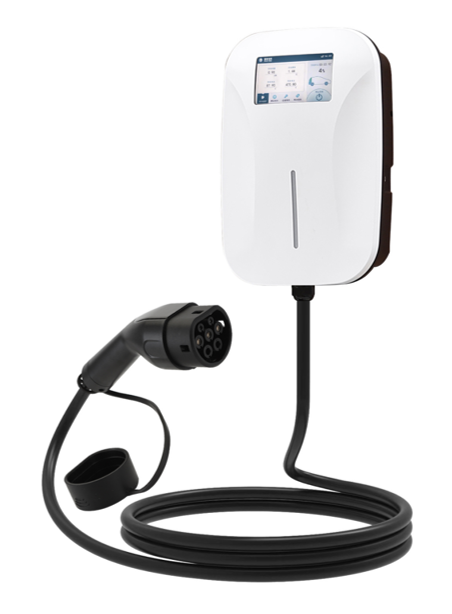

EV Charging Station Screen Type-European Standard Mode 3
Adaptation: 7KW
Rated operating current: 32A
Rated operating voltage: 250V AC
Charging method: plug and charge/swipe card/Bluetooth
Installation method: wall-mounted/floor-standing
Charging cable length: 5m (customizable)
Power cord specifications: EV-(R)EYS90 3x6mm2+1×0.75mm2
Operating temperature: < 50K
Plugging force: <100N
Flame retardant rating: UL94 V-0
Protection class: IP67 (charging adapter), IP55 (charging adapter coupling), IP54 (housing of charging station)
Number of insertions and withdrawals: >10,000 times
Product certification: CE
Protective design: overvoltage protection, undervoltage protection, overload protection, grounding protection, low temperature protection, lightning protection, leakage protection
Product dimensions (W*L*H):
Product weight (KG):
Implemented standards:
