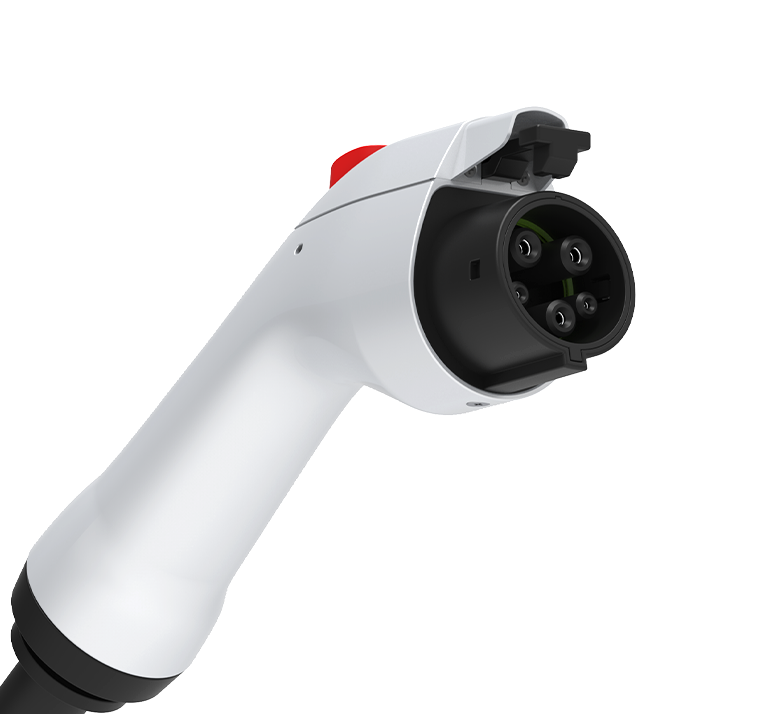

EV Charging Adapter-American Standard

Adaptation: 7KW/11KW
Rated operating current: 32A/50A
Rated operating voltage: 250V AC
Operating ambient temperature: -40℃-55℃
Temperature rise during charging: < 50K
Plugging force: <80N
Flame retardant rating: UL94 V-0
Protection class: IP67, Chargeable Insertion and Removal IP55
Mechanical life: >10,000 times
Product design basis: IEC 62196-2-2022 SAE-J1772-2017
